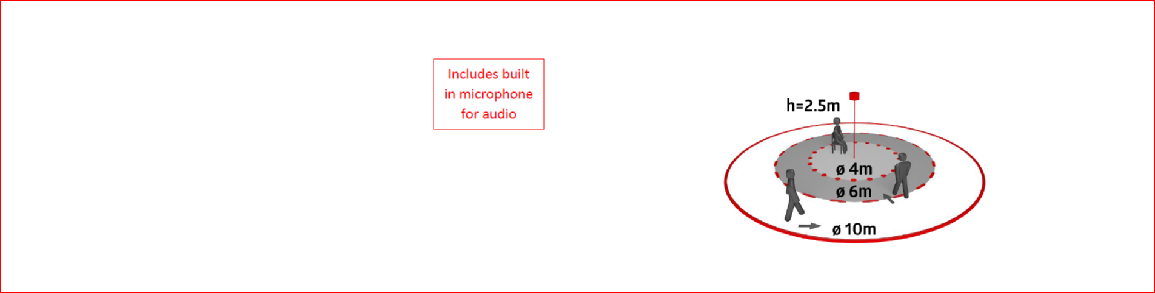

SENSORSm Audio
PD2-M-1C-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 98 x 47 mm
Power consumption: approx. 0.4 W
92550 - Ceiling Mount Occupancy Sensor
Verdant
Channel Vision
ConnectPlus
PD4-M-1C-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 98 x 63 mm
Power consumption: approx. 0.4 W
1x µ-contact, dry NO contact with tungsten pre-make contact
Surface Mount, IP20
92580 - Ceiling Mount Occupancy Detector
PD2-M-1C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 80 x 85 mm
Power consumption: approx. 0.4 W
92565 - Ceiling Mount Occupancy Sensor
PD4-M-1C-GH-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 98 x 63 mm
Power consumption: approx. 0.5 W
1x µ-contact, dry NO contact with tungsten pre-make contact
Surface Mount, IP20
92245 - High-Bay Ceiling Mount Occupancy Detector
PD4-M-2C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 97 x 103 mm
Power consumption: approx. 0.5 W
1x µ-contact, NO contact with tungsten pre-make contact
Ceiling Mounted, IP20
92148 - Occupancy Detector With Extended Range
PD4-M-1C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 97 x 103 mm
Power consumption: approx. 0.4 W
1x µ-contact, dry NO contact with tungsten pre-make contact
IP20
92585 - Ceiling Mount Occupancy Detector
PD4-M-2C-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 101 x 76 mm
Power consumption: approx. 0.5 W
1x µ-contact, NO contact with tungsten pre-make contact
IP54, 2 Channel
92140 - Occupancy Detector With Extended Range
PD4-S-GH-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 101 x 76 mm
Power consumption: approx. 0.2 W
Horizontal 360° oval (Ceiling mounting)
Range : 30m x 19m
92265 - Slave Device For High-Bay Applications
PD2-S-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 98 x 50 mm
Power consumption: approx. 0.2 W
78 m² / 2.5 m mounting height
92152 - Slave Detector With Circular Detection Area
PD2-M-2C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 80 x 85 mm
Power consumption: approx. 0.5 W
Ceiling Mounted
2 Channel
92165 - Occupancy Detector With Circular Detection
PD4-S-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 97 x 103 mm
Power consumption: approx. 0.2 W
450 m² / 2.5 m mounting height
IP20 / Class II
92254 - Slave Detector With Extended Range
PD4-S-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 101 x 76 mm
Power consumption: approx. 0.2 W
450 m² / 2.5 m mounting height
IP54 / Protection Class II
92142 - Slave Detector With Extended Range
PD2-S-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 80 x 85 mm
Power consumption: approx. 0.2 W
78 m² / 2.5 m mounting height
92166 - Slave Detector With Circular Detection Area

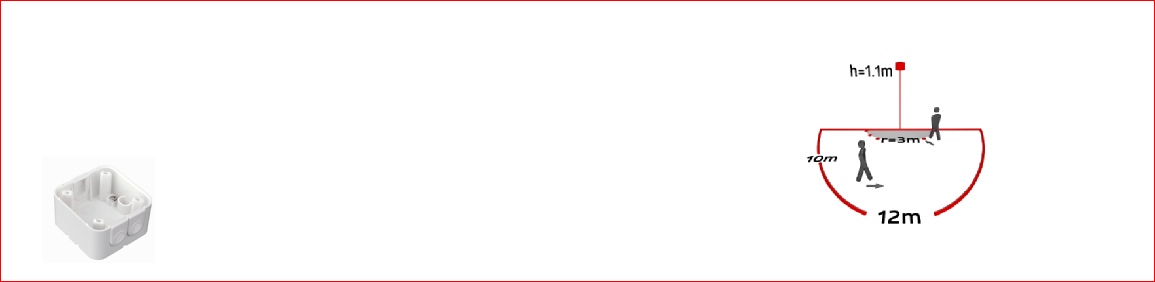

Surface mounting socket Indoor 180
Dimensions: 88 x 88 x 42 mm
Degree / class of protection: IP54
Impact strength: IK05
92141 - Surface Mount Socket
HF-MD2-SM
Voltage: 230 V AC +/- 10% 50 / 60 Hz
Dimensions: Ø 117 x 45 mm
Power consumption: approx. 1.2 W
Horizontal 360° (Ceiling mounting)
Range : 0.4 – 16 m
94402 - Microwave Motion Detector
PD2-M-2C-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 98 x 47 mm
Power consumption: approx. 0.5 W
Surface Mount, 2 Channel
78 m² / 2.5 m mounting height
92150- Occupancy Detector With Circular Detection
RC-plus next N 280
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: 121 x 71 x 85 mm
Power consumption: approx. 0.5 W
Switching output (1 Channel)
970 m² / 2.5 m recommended mounting height
93341 - Outdoor Motion Detector
RC-plus next N 130
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: 121 x 71 x 85 mm
Power consumption: approx. 0.5 W
130 Degree, IP54, Mounting Hight : 2.5m
Switching output (1 Channel)
93321- Outdoor Motion Detector
Indoor 180-R covering included
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: covering included 87 x 87 x 61 mm
Power consumption: approx. 0.5 W
1x µ-contact, NO contact with tungsten pre-make contact
92623 - Wall Detector
RC-plus next N 230
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: 121 x 71 x 85 mm
Power consumption: approx. 0.5 W
Switching output (1 Channel) KNX
800 m² / 2.5 m mounting height
93331 - Outdoor Motion Detector
PD3N-1C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 83 x 81 mm
Power consumption: approx. 0.5 W
1x µ-contact, NO contact with tungsten pre-make contact
78 m² / 2.5 m mounting height
92196 - Ceiling Mount Motion Detector
PD3N-1C-FC Micro
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 83 x 81 mm
Power consumption: approx. 0.5 W
78 m² / 2.5 m mounting height
92184 - Ceiling Mount Motion Detector
BL2-FC
Voltage: 110 – 240 V
Dimensions: Ø 80 x 61 mm
Power consumption: 0.3 W
50 m² / 2.5 m mounting height
IP23 / Class II
93317 - Ceiling Mount Motion Detector
PD3N-1C-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 106 x 53 mm
Power consumption: approx. 0.5 W
1x µ-contact, NO contact with tungsten pre-make contact
Switching output, switching output (1 Channel)
92190 - Ceiling Mount Motion Detector
PD4N-1C-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 109 x 65 mm
Power consumption: approx. 0.5 W
450 m² / 2.5 m mounting height
IP44 / Class II
92144 - Ceiling Mounted Motion Dectector
Mounting set BL2-SM
Dimensions: Ø 109 x 50 mm
Degree / class of protection: IP23
Material color: white
93256 - Surface Mount For BL2 FC Devices
PD3N-1C-SM Micro
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 106 x 53 mm
Power consumption: approx. 0.5 W
78 m² / 2.5 m mounting height
IP44 / Class II
92219 - Ceiling Mount Motion Detector
PD4N-1C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 106 x 90 mm
Power consumption: approx. 0.5 W
IP23
Ceiling-mounted - 2.5m
92149 - Ceiling Mounted Motion Detector
BL4-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 104.5 x 84 mm
Power consumption: approx. 0.3 W
280 m² / 2.5 m mounting height
IP20 / Class II

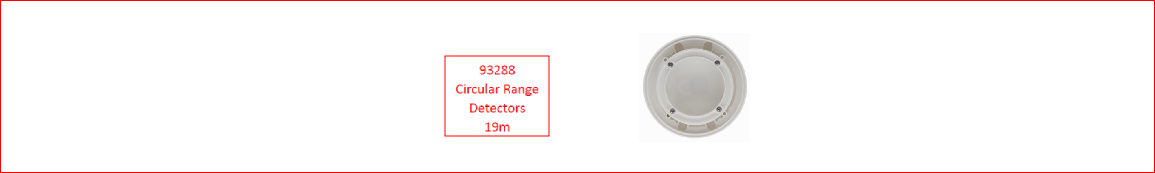

93288 - Ceiling Mount Motion Detector
PD4N-1C-C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 106 x 90 mm
Power consumption: approx. 0.4 W
250 m² / 2.5 m mounting height
IP23 / Class II
92274 - Ceiling Mount Motion Detector
BL4-C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 104.5 x 84 mm
Power consumption: approx. 0.3 W
200 m² / 2.5 m mounting height
IP20 / Class II
93284 - Ceiling Mount Motion Detector
Mounting set BL4-SM
Dimensions: Ø 109 x 34 mm
Impact strength: IK06
Material color: white
93183
Wire basket BSK
Dimensions: 200 x 90 mm
Impact strength: IK09
Housing: coated steel basket
White
92199 - Wire Cage
SM socket IP54 for PD2- / PD4-SM
Dimensions: Ø 100 x 15 mm
Degree / class of protection: IP54
Housing: polycarbonate, UV-resistant
92161- SM Socket IP54 For PD2- / PD4-SM
PD4N-1C-C-SM
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 109 x 65 mm
Power consumption: approx. 0.4 W
250 m² / 2.5 m mounting height
IP44 / Class II
92270 - Ceiling Mount Motion Detector
PD3N-2C-FC
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 83 x 81 mm
Power consumption: approx. 0.5 W
1x µ-contact, NO contact with tungsten pre-make contact
Switching output, switching output (2 Channel)
92198 - Ceiling Mount Motion Detector
Pendulum mounting set PD2/3/4 SM
Dimensions: 1 : 113 x 79 mm, 2 : Ø 113 x 34 mm
Housing: polycarbonate, UV-resistant
Material color: white, similar to RAL9010
93179 - Pendant Mount For Surface-Mounted Devices
10m
24m
24m
10m
24m
20m
20m
20m
10m
10m
30m
30m
10m
20m
10m
10m
10m
10m
24m
24m
19m
40m
40m
32m
24m
10m
10m
30m
10m
HF-MD1
Voltage: 230 V AC +/- 10% 50 / 60 Hz
Dimensions: 101 x 42 x 42 mm
Power consumption: approx. 1.2 W
Horizontal 360° (Ceiling mounting)
Range : 0.4 – 16 m
94401 - Microwave Motion Detector
16m
16m
ACCESSORIES
Energy Efficient Lighting Control
