TV

C-0332

1 in 16 out RF Amplifier
Unity gain on all ports
1 GHz broadband amplification with Bi-directional, 54-1000 MHz forward and 5-42 MHz return
IR passing from input port to output port and from output port to output port

C-0202

1 In 2 Out Splitter / Combiner
3.5dB maximum insertion loss. 75 ohm impedance
With DC and IR passing on all ports

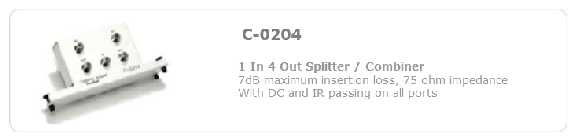

C-0204

1 In 4 Out Splitter / Combiner
7dB maximum insertion loss, 75 ohm impedance
With DC and IR passing on all ports

C-0208

1 In 8 Out Splitter / Combiner
7dB maximum insertion loss, 75 ohm impedance
With DC and IR passing on all ports

HS-2

1 In 2 Out Splitter / Combiner
75 ohm impedance, 1 GHz
With DC and IR passing on all ports

HS-3

1 In 3 Out Splitter / Combiner
75 ohm impedance, 1 GHz
With DC and IR passing on all ports

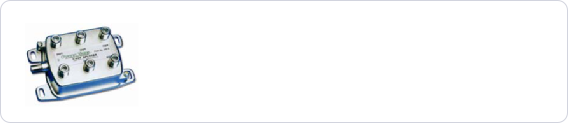

HS-6

1 In 6 Out Splitter / Combiner
75 ohm impedance, 1 GHz
With DC and IR passing on all ports

C-0213

8 Way RF patch Panel
Band pass frequency 5 - 2000 MHz RF loss input to port = .5 Voltage attenuation = 0

Channel Vision TV SPLITTERS & AMPLIFIERS
TV distribution products delivering the finest picture quality.

1 in 4 out Amplified Splitter
8dB signal gain per output
IR passing on all output ports
Bi-directional
5-42Mhz return path
54-1000Mhz forward path

C-0314

C-0315

C-0310

1 in 1 out 10dB Amplifier
Bi-directional return path
Power injectd down the coax
5-42Mhz return path
54-1000Mhz forward path

1 in 1 out 15dB Amplifier
15dB Amplifier, DC passing for remote power
Bi-direction 5-42 Mhz return path, 54-1000 Mhz forward path.

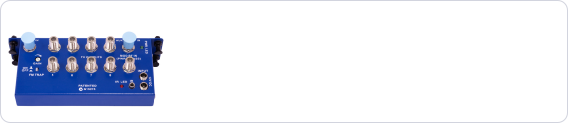

C-0333

2 x 8 RF Splitter
8 outputs for runs to 30m
4 dB signal gain per output
2dB modulator input gain
IR passing from output port to output port

Verdant

Channel Vision

ConnectPlus

SAT-D2MINI-F

Diplexor
75 ohm impedance, 2 GHz

HS-4

1 In 4 Out Splitter / Combiner
75 ohm impedance, 1 GHz
With DC and IR passing on all ports
